A contract has two signers. I want to archive the contract through JsonAPI. How should the token be assembled?

Questions
1

This is the error message

image1375×583 54.4 KB

image1264×346 19.7 KB

This is the error message for using another token

image1176×529 56.7 KB


2

Hi, @skylorna.

Your first screenshots show that in the first case, you did not have sufficient authorization.

Your second screenshots show that in the second case, after fixing the authorization issue, you ran into a second issue, summarized by “malformed request.”

I don’t know for sure, but I would start by examining the payload JSON that you are sending to the endpoint. It might be that the payload JSON does not match the expected input for the endpoint you are calling.

3

Hi @WallaceKelly this is my Json ,I archived all other contracts with only one signer using this json, only contracts with 2 signers won’t work

image1294×453 26.6 KB

4

Everything looks correct in your screenshots. I tried to reproduce the issue on my machine, but was not able to. Below are the steps I took. Perhaps this will help us identify what might be going on…

Using Daml 2.5.1.

  1. daml new ArchiveTest
  2. cd ArchiveTest
  3. daml studio
  4. Edit the Main.daml to require two signatories. (See code below.)
  5. daml start
  6. In Navigator, grab the ids for Alice, Bob, the template, and the contract.
  7. At http://jwt.io, create a JWT payload with Alice’s and Bob’s ids. (See payload below.)
  8. In Postman, create a GET request to http://localhost:7575/v1/exercise. Use the encoded JWT token for the authorization, bearer token. Set the body to the JSON payload. (See code below.)
Main.daml
module Main where

import Daml.Script

type AssetId = ContractId Asset

template Asset
  with
    issuer : Party
    owner  : Party
    name   : Text
  where
    ensure name /= ""
    signatory issuer, owner -- added owner
    observer owner
    choice Give : AssetId
      with
        newOwner : Party
      controller owner
      do create this with
           owner = newOwner

setup : Script AssetId
setup = script do
-- user_setup_begin
  alice <- allocatePartyWithHint "Alice" (PartyIdHint "Alice")
  bob <- allocatePartyWithHint "Bob" (PartyIdHint "Bob")
  aliceId <- validateUserId "alice"
  bobId <- validateUserId "bob"
  createUser (User aliceId (Some alice)) [CanActAs alice]
  createUser (User bobId (Some bob)) [CanActAs bob]
-- user_setup_end

  submitMulti [alice, bob] [alice, bob] do -- modified
    createCmd Asset with
      issuer = alice
      owner = bob
      name = "TV"
JWT payload
{
  "https://daml.com/ledger-api": {
    "ledgerId": "sandbox",
    "applicationId": "foobar",
    "actAs": ["Alice::1220da75f38e5e1646005009f38663d6a5f852e340f00b986ca1d3664a1de899ca90","Bob::1220da75f38e5e1646005009f38663d6a5f852e340f00b986ca1d3664a1de899ca90"]
  }
}
JSON payload
{
    "templateId": "3907bff048d6a5f1f7011cdde7cdd32dbd96895533abde443716945373d3a8a2:Main:Asset",
    "contractId": "00e9ba1dd24395ca912a7e604c769a7c1f27d99215649fcd8e7405b71f9435d356ca011220b68a1ab794074167f5c80c432cf06174e45a6e96f25ccbcba66ec1964f932fad",
    "choice": "Archive",
    "argument": {}
}

Here is the result on my machine:

image1322×1426 122 KB

Can you think of anything that is different in your case?

5

@WallaceKelly canton
I upload dar file to canton-enterprise-2.3.4
and use DAML SDK 2.5.0 start JsonAPI service
The contract is historical data, not sure about the SDK version that generated the dar file

6

@WallaceKelly
Another difference is that my two signers are on different participant nodes

7

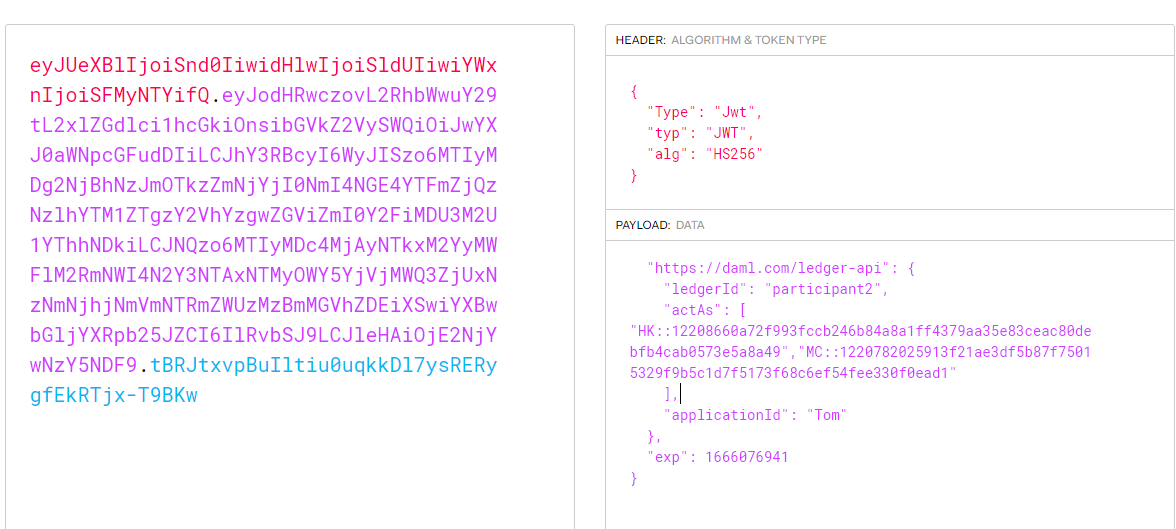

I just spotted that the exp field of your token is 1666076941, which is a timestamp that points to October in the last year.

8

I reassembled the token, still the same error

image1200×468 53.9 KB


9

First you should check the JSON API Server logs if there are more details about it, then the logs produced by your participant node.

10

I found this error message in the log
Malformed request err-context:{location=TransactionProcessingSteps.scala:281, message=Confirmation request creation failed, reason=ParticipantAuthorizationError(PAR::participant2::12208660a72f… does not host MC::1220782025913f21ae3df5b87f75015329f9b5c1d7f5173f68c6ef54fee330f0ead1 or is not active.)}

HK is participant2‘s party, MC is participant1’s party, HK and MC both the signatories,and I want to Archive the contract by use participant1‘s JsonAPI

11

When I switched to the JsonApIiof participant1 to Archive, this error occurred.

image1184×279 12.6 KB

At present, it seems that the contract is signed by two parties on the two participant nodes, but there is no dar file for this contract on participant1 nodes.

12

That shouldn’t be possible. How did you verify that the contract has both parties as signatories? You could try uploading the DAR again. Uploading the same DAR multiple times is harmless so that shouldn’t cause any issues.

1 Like
13

It may be that participant1 has been artificially deleted. There is no such dar file on participant1 and the contract cannot be found, so it should be an illegal operation that caused this problem. Thank you.

2 Likes
